Have you noticed your boiler pressure constantly dropping or mysterious damp patches appearing around your home? These could be telltale signs of a central heating leak that requires immediate attention. Central heating leak detection is a crucial process that helps identify and resolve issues within your heating system before they escalate into costly repairs or property damage.
In this comprehensive guide, we’ll explore how to identify, locate, and fix leaks in your central heating system, whether you’re dealing with boiler pressure loss, radiator leaks, or hidden pipe problems. Understanding the fundamentals of leak detection can save you hundreds of pounds and prevent significant damage to your property.
Table of Contents
Common Signs of a Central Heating Leak
Spotting a leak early can prevent extensive damage to your home and heating system. Here are the key indicators that suggest you might have a leak:
- Unexplained drops in boiler pressure: If you find yourself frequently topping up your boiler’s pressure, a leak is likely present somewhere in your system. Most boilers should maintain a pressure between 1 and 1.5 bar when cold.
- Water stains or damp patches: Look for discoloration on ceilings, walls, or floors, especially near radiators or where pipes run. These patches may appear yellowish or brownish and feel damp to touch. In severe cases, you might notice peeling paint or wallpaper.
- Unusual sounds: Gurgling, hissing, or ticking noises from your radiators or pipes can indicate trapped air or water escaping. These sounds often become more noticeable when the heating system is in operation.
- Cold spots on radiators: These suggest air pockets resulting from water loss in the system. When you touch your radiator, you might notice that the top is hot while the bottom remains cold, or vice versa, indicating uneven heating.
- Increased heating bills: Leaks force your boiler to work harder, driving up energy consumption. If your heating bills have increased significantly without a corresponding rise in energy prices or change in usage patterns, a leak could be the culprit.
- Visible corrosion: Rust or limescale around pipe joints, radiator valves, or the boiler itself can indicate leakage. Look for greenish deposits on copper pipes or reddish-brown staining on steel components.
- Warm or hot spots on your floor: Particularly concerning for underfloor heating systems or if you have pipes running under flooring. These warm patches might be subtle but can be detected by walking barefoot across the floor.
- Reduced heating efficiency: If your radiators take longer to heat up or don’t reach their usual temperature, this could indicate water loss in the system due to a leak.
- Frequent system repressurization: Having to refill your system weekly or even daily is a clear indication that water is escaping somewhere.
Regular visual inspections of your heating system components can help identify these signs before they develop into more serious issues. Pay particular attention to pipe joints, radiator valves, and boiler connections when conducting your checks.
Causes of Leaks in Heating Systems
Understanding what causes central heating leaks can help prevent them or identify the source more quickly when they occur:

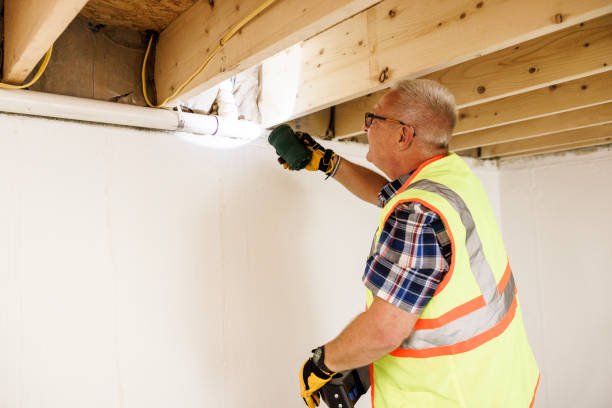

Pipe Corrosion
Over time, metal pipes can corrode, particularly in older properties with original pipework. Corrosion gradually weakens the pipe walls until tiny pinhole leaks develop. Factors that accelerate corrosion include:
- Water with high mineral content (hard water)
- Lack of corrosion inhibitor in the system
- Improper pH balance in your heating water
- Electrochemical reactions between different metals in the system
- Oxygen entering the system repeatedly through frequent refills
- Poor water quality or contamination
In copper pipes, you might notice small green patches where corrosion has begun. Steel pipes typically show orange-brown rust spots before leaks develop.
Faulty Pipe Connections
Leaks commonly occur at joints and connections, where pipes meet valves, radiators, or the boiler itself. Problems include:
- Loose fittings due to vibration over time
- Improper installation or poor-quality components
- Dried-out seals and gaskets
- Thermal expansion and contraction stress
- Over-tightened fittings causing damage to the sealing surfaces
- Use of incompatible materials in the same system
- Joints made with incompatible solders or fluxes
Push-fit connections are particularly vulnerable if not installed correctly, while compression fittings may work loose over years of thermal cycling as the system heats up and cools down.
Radiator Issues
Radiators themselves can develop leaks for several reasons:
- Internal corrosion, especially in older radiators
- Damage from impact or manufacturing defects
- Faulty valves that fail to close properly
- Loose spindle nuts that need tightening
- Pin-hole leaks developing in thin metal sections
- Poor welding at factory joints
- Stress cracks from thermal expansion
- Damage from excessive water pressure
Modern radiators typically last 8-12 years before being at risk of developing leaks, but older cast iron radiators can last decades if properly maintained.

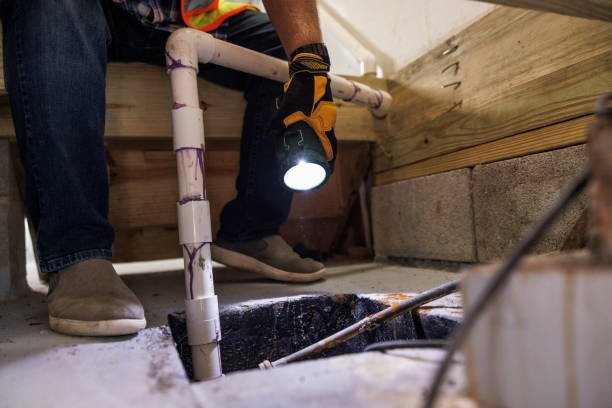

Underfloor Heating Problems
Underfloor heating systems present unique challenges:
- Joint failures in pipes beneath flooring
- Damage during floor installation or renovation
- Excessive pressure in the system
- Manufacturing defects in the pipe materials
- Stress points where pipes pass through screed or flooring layers
- Damage from nails or screws driven through flooring
- Rodent damage to plastic pipes
- Excessive floor weight causing pipe compression
The difficulty with underfloor heating leaks is that they can go undetected for longer periods, causing significant damage before they’re noticed.

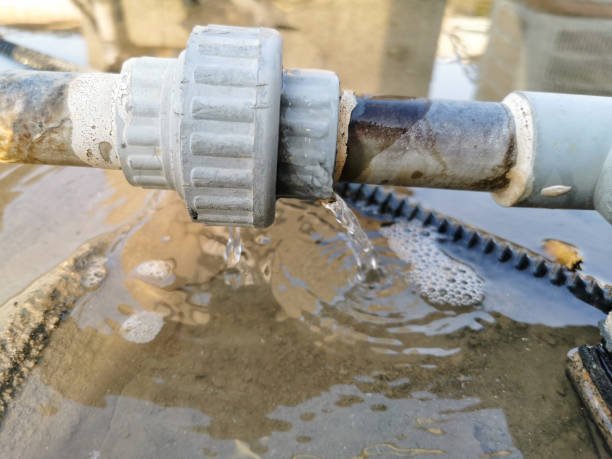

Boiler Components
The boiler itself can develop leaks due to:
- Worn pump seals
- Cracked heat exchangers
- Faulty pressure relief valves
- Damaged internal components
- Corroded pipe connections
- Failed gaskets or O-rings
- Stress fractures in the boiler body
- Loose water connections from vibration
Modern condensing boilers are particularly vulnerable to leaks in their condensate traps and drainage systems, which can sometimes be mistaken for more serious internal leaks.
Regular central heating maintenance can significantly reduce the risk of these issues developing into serious leaks. Annual servicing by a qualified heating engineer can identify potential problems before they result in leakage.
How Professionals Detect Heating Leaks
Modern leak detection specialists use sophisticated technologies to precisely locate leaks without causing unnecessary damage to your property. Here’s how the professionals find even the most elusive leaks:
Thermal Imaging

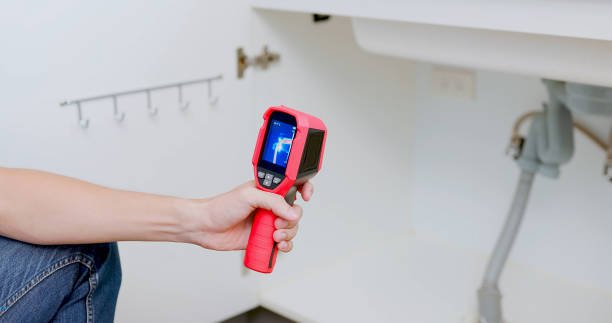

Thermal imaging cameras detect temperature differences caused by water leaks. This non-invasive technique can identify:
- Hidden leaks within walls
- Underfloor heating issues
- Subtle temperature variations from slow leaks
The specialist will scan your walls, floors, and ceilings to identify unusual hot or cold spots that could indicate leaking water. This technology is particularly effective for locating underfloor heating leaks where visual inspection is impossible.
Professional thermal imaging cameras can detect temperature differences as small as 0.1°C, making them incredibly sensitive to the presence of water. The technology works by creating a color-coded image where different temperatures appear as different colors, allowing technicians to spot anomalies at a glance.
Modern thermal cameras can also record images for comparison over time, helping to determine if a damp area is getting worse or improving after repairs.
Acoustic Detection

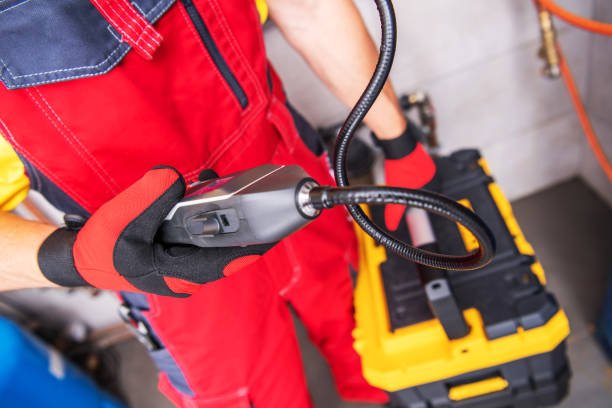

Advanced acoustic equipment amplifies the sound of water escaping from pipes, allowing technicians to:
- Precisely locate the source of leaks
- Detect even small leaks that make minimal noise
- Identify leaks in hard-to-reach areas
By using sensitive microphones and frequency filters, professionals can distinguish between normal water flow sounds and the distinctive signature of a leak. The equipment typically includes ground microphones for solid floors, contact microphones for pipes, and specialized amplifiers that filter out background noise.
These devices can detect the hissing or splashing sounds made by water escaping under pressure, even when these sounds are far too quiet for the human ear to perceive. By moving the sensors systematically, technicians can triangulate the exact location of a leak.
Tracer Gas Detection

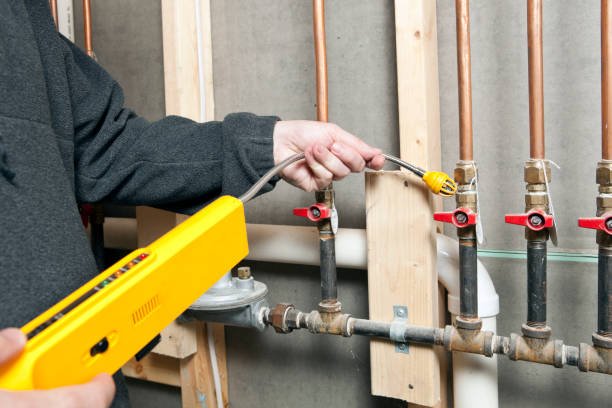

For particularly challenging leaks, specialists may introduce a harmless tracer gas (typically hydrogen mixed with nitrogen) into your heating system. The gas:
- Escapes through any leak points
- Is detected using sensitive electronic “sniffers”
- Provides pinpoint accuracy for leak location
- Leaves no residue in your system
This method excels at finding very small leaks that other techniques might miss. The hydrogen component of the gas mixture is the smallest molecule known, meaning it can escape through even the tiniest holes that water might not visibly penetrate. However, the concentration used is non-flammable, making it perfectly safe for use in residential heating systems.
The detection devices can identify gas concentrations as low as 5 parts per million, providing extraordinary sensitivity. After the leak is located and repaired, the gas naturally dissipates from the system without leaving any trace.
Moisture Meters
Professional moisture meters detect elevated moisture levels in building materials, helping to:
- Confirm suspected leak locations
- Assess the extent of water damage
- Monitor if dampness is recent or longstanding
When used in conjunction with other detection methods, moisture meters help verify findings and determine how extensive the leak damage might be. They work by measuring the electrical resistance or capacitance of materials, which changes when moisture is present.
Advanced meters can distinguish between surface moisture and deep dampness, helping technicians determine if a leak is active or if the area is simply drying out from a previous incident. Some models can even estimate how long moisture has been present based on readings at different depths.
Pressure Testing
By isolating sections of your heating system and monitoring pressure changes, technicians can:
- Determine if leaks exist
- Identify which section of the system is affected
- Quantify the severity of the leak
This systematic approach is particularly useful in complex heating systems with multiple zones or circuits. The technician will typically:
- Close off different sections of the system
- Pressurize each section individually
- Monitor pressure readings over a set period
- Calculate the rate of pressure loss to estimate leak severity
Pressure testing can be particularly effective for identifying the general location of a leak before using more precise methods to pinpoint the exact spot.
DIY Leak Detection Tips
While professional detection is often necessary, there are several steps you can take to investigate potential leaks before calling in the experts:
1. Visual Inspection
Conduct a thorough check of all visible components:
- Examine radiator valves and joints for signs of moisture
- Look for water stains on floors beneath radiators
- Check pipe joints and connections in accessible areas
- Inspect around the boiler for any signs of water
- Look under floorboards where possible
- Check ceiling spaces if accessible
- Examine visible pipework in cupboards and utility areas
Use a torch to improve visibility in dark areas, and a small mirror can help you check behind pipes or in awkward corners. Sometimes, a simple visual inspection is all that’s needed to spot obvious leaks.
2. Monitor Boiler Pressure
Keep track of your boiler pressure:
- Note the pressure reading when the system is cold (typically should be around 1-1.5 bar)
- Check again after 24 hours without using the heating
- A significant drop indicates a leak somewhere in the system
For more detailed monitoring, take photographs of the pressure gauge at the same time each day for several days. This can help establish patterns and determine if pressure loss is consistent or intermittent. Remember that small pressure fluctuations are normal with temperature changes, but a steady decline indicates a problem.
3. The Radiator Bleeding Test
This simple test can help identify radiator leaks:
- Turn off your heating system and allow it to cool completely
- Place old towels or containers beneath radiator valves
- Carefully bleed each radiator, watching for unusual water flow or drips
- Pay attention to any water that continues to flow after air has been released
Normally, when bleeding a radiator, you should hear air escaping followed by a few drops of water, then a steady stream. If you get a continuous stream of water immediately, this might indicate excessive system pressure or a problem with the expansion vessel.
4. Isolate System Components
If you suspect a leak but can’t locate it:
- Turn off your heating system
- Close the isolation valves on each radiator one by one
- Re-pressurize the system and monitor if pressure still drops
- If pressure stabilizes after isolating specific radiators, you’ve likely found the problem area
This methodical approach can help narrow down which part of your system is leaking. Start with radiators in areas where you suspect leaks, such as those near damp patches or with visible corrosion. Remember to reopen all valves once you’ve completed your testing.
5. Check Your Boiler
Inspect your boiler for potential issues:
- Look for water pooling under the boiler
- Check the pressure relief valve for signs of discharge
- Inspect visible pipe connections for moisture
- Look for corrosion or staining on pipes entering and exiting the boiler
- Check if the condensate pipe is intact and properly connected
- Examine the heat exchanger area if visible
The pressure relief valve (PRV) is a common source of water loss in heating systems. It’s designed to release water if the pressure gets too high, but faulty valves may discharge water unnecessarily. Look for signs of water or lime scale around the valve’s outlet pipe.
CAUTION: Never attempt to dismantle your boiler or any sealed components of your heating system. This work should only be performed by qualified professionals with appropriate certifications. Gas appliances, in particular, require specialist knowledge and qualifications to work on safely.
When to Call a Leak Detection Specialist
While DIY investigation can be helpful, certain situations require professional expertise:
- Persistent pressure loss despite your attempts to locate the leak
- Suspected leaks in inaccessible areas such as under solid floors or within walls
- Underfloor heating problems where locating the exact leak point is challenging
- Evidence of extensive water damage suggesting a significant or long-standing leak
- Multiple potential leak points making it difficult to determine the primary source
- Sudden system failure or emergency situations
- Insurance claim requirements where professional documentation is needed
- High-value properties where minimizing invasive work is a priority
- Historic buildings where preservation of original features is important
- Recent renovation work coinciding with leak problems
Professional leak detection specialists have the equipment, expertise, and experience to locate leaks quickly and accurately, minimizing disruption to your home and potentially saving you money on unnecessary exploratory work.
When choosing a specialist, look for:
- Industry accreditations and trade association memberships
- Specific leak detection qualifications and experience
- Positive customer reviews and testimonials
- Clear pricing structures with no hidden fees
- Guarantee of their work and findings
- Insurance and liability coverage
Need professional help? Our certified leak detection engineers are available 24/7 for emergency assistance.
Cost of Central Heating Leak Detection in the UK
The cost of professional leak detection varies depending on several factors:
| Service Level | Approximate Cost Range | What’s Included |
|---|---|---|
| Basic Inspection | £120-£180 | Visual inspection, pressure testing, basic acoustic detection |
| Standard Detection | £180-£300 | All basic services plus thermal imaging, moisture mapping |
| Comprehensive Survey | £300-£600 | Full system analysis, multiple detection methods, detailed report |
| Emergency Call-Out | Additional £50-£100 | Same-day service outside normal hours |
Please note: These prices are approximate and may vary depending on your location, the complexity of your heating system, and the specific company you choose.
Factors that can influence the cost include:
- Property size and system complexity
- Accessibility of the heating system
- Age and type of heating system
- Urgency of the detection (emergency vs. scheduled)
- Geographic location (London and the Southeast typically charge more)
- Whether a written report is required for insurance purposes
Many companies offer a fixed fee for the detection service, with separate quotes for any necessary repair work once the leak has been located. Always check exactly what’s included in the quoted price and whether there are additional charges for certain detection methods.
Insurance Coverage: Trace and Access
Many home insurance policies include “trace and access” cover, which pays for:
- The cost of finding the source of a leak
- Necessary disruption to floors, walls, or ceilings
- Repairs to restore these surfaces after the leak is fixed
However, the cost of repairing the actual leak itself is often not covered, so check your policy carefully. Typical trace and access cover ranges from £5,000 to £10,000, but limits vary between policies.
Before arranging professional leak detection, contact your insurance provider to:
- Confirm if trace and access cover is included in your policy
- Understand any specific requirements for claims (such as using approved contractors)
- Determine if there’s an excess payment required
- Clarify what documentation you’ll need for a successful claim
- Check if they have preferred suppliers for leak detection
Some insurers have specific procedures that must be followed, such as using their approved contractors or obtaining multiple quotes before proceeding. Failing to follow these procedures might invalidate your claim, so always check before arranging any work.
Preventing Future Heating Leaks
Taking proactive steps can significantly reduce the risk of future leaks:
Regular Maintenance
Schedule annual boiler and heating system servicing by a qualified professional to:
- Identify potential issues before they develop into leaks
- Ensure all components are functioning correctly
- Extend the lifespan of your heating system
- Maintain manufacturer warranties
During a professional service, the engineer should check for early signs of corrosion, ensure correct system pressure, inspect key components for wear, and verify that safety features are working properly. This preventative approach costs far less than emergency repairs and system replacements.
Many heating engineers offer maintenance plans that include annual servicing and priority emergency call-outs, providing peace of mind and spreading the cost throughout the year.
Water Treatment
Proper water treatment protects your system from corrosion:
- Add a quality corrosion inhibitor to your heating system
- Consider installing a magnetic filter to capture circulating debris
- For hard water areas, a scale reducer can prevent limescale buildup
Corrosion inhibitors work by forming a protective layer on the internal surfaces of your heating system, preventing oxygen and minerals in the water from causing damage. These chemicals need to be replenished periodically, typically every 5 years or whenever the system is drained.
Magnetic filters capture magnetite (black iron oxide) created by corrosion before it can circulate through the system and cause blockages or damage. These devices usually require annual cleaning to maintain their effectiveness.
Pressure Management
Maintain appropriate system pressure:
- Check your boiler pressure gauge monthly
- Learn how to safely repressurise your system when needed
- Install an automatic pressure relief valve if your system frequently overpressurizes
Excessive pressure can strain connections and accelerate wear on components, while insufficient pressure can cause air to enter the system, increasing corrosion risk. Most domestic systems should operate at 1-1.5 bar when cold and 2-2.5 bar when hot. Significant deviations from these ranges should be investigated.
If your system frequently loses pressure, consider having the expansion vessel checked, as this component is designed to accommodate water expansion and contraction without pressure changes.
Upgrade Aging Components
Consider preventative replacement of:
- Radiators over 15-20 years old
- Visible pipework showing signs of corrosion
- Dated valves and fittings
- The boiler itself if it’s nearing the end of its expected lifespan
While replacing components proactively represents an upfront cost, it can prevent the much higher expense and inconvenience of emergency repairs and water damage. Modern components often bring additional benefits in terms of energy efficiency and improved control.
When replacing radiators, it’s worth considering upgrading to models with better heat output or more efficient designs. Similarly, upgrading to thermostatic radiator valves can improve comfort and reduce energy consumption.
Professional System Flush
Every 5-6 years, consider a professional power flush to:
- Remove sludge buildup that can cause blockages and increase pressure
- Clean the entire system of corrosion deposits
- Improve heating efficiency and reduce energy bills
- Extend system longevity
A power flush uses specialized equipment to force a powerful cleaning solution through your heating system, dislodging and removing built-up debris. The process typically takes 4-8 hours depending on system size and condition, and should always be followed by adding fresh corrosion inhibitor.
While power flushing is effective, it can sometimes disturb existing debris that was previously harmless, potentially causing problems elsewhere in the system. For this reason, it should only be performed by experienced professionals who can assess whether your system is suitable for the procedure.
Investing in preventative maintenance is invariably less expensive than emergency repairs and can improve your heating system’s energy efficiency, saving you money on fuel bills.
FAQs
How can I find a leak in my heating system?
Start with a visual inspection of all accessible components, including radiators, valves, and visible pipework. Monitor your boiler pressure over 24-48 hours; a significant drop indicates a leak. For hidden leaks, professional detection using thermal imaging, acoustic equipment, or tracer gas is usually required.
Is leak detection covered by insurance?
Many home insurance policies include “trace and access” cover that pays for finding and accessing a leak, including necessary disruption to floors or walls. However, the actual repair of the leak and any damage caused by it may be covered under different sections of your policy. Check your specific policy details and contact your insurer before arranging leak detection.
How accurate is thermal imaging for finding heating leaks?
Thermal imaging is highly accurate for detecting temperature differences caused by water leaks, with modern cameras able to detect temperature variations as small as 0.1°C. However, its effectiveness depends on various factors including the leak’s size, location, and how long water has been present. For optimal results, thermal imaging is often combined with other detection methods such as acoustic detection or moisture mapping.
Will I need to lift my flooring to find a leak?
Not necessarily. Modern non-invasive leak detection techniques like thermal imaging, acoustic detection, and tracer gas can often locate leaks without disturbing flooring. However, once the leak is pinpointed, some disruption may be required to access and repair it. Professional leak detection specialists aim to minimize necessary disruption.
How long does professional leak detection take?
A thorough leak detection survey typically takes 1-3 hours, depending on the size of your property and complexity of your heating system. More challenging leaks may require extended investigation. Most professional services can locate the majority of leaks within a single visit.
Can I still use my heating with a suspected leak?
If you suspect a minor leak, you can usually continue to use your heating system while monitoring the situation, provided you regularly check and maintain the boiler pressure. However, if the pressure drops rapidly, there’s visible water damage, or the boiler cuts out frequently, you should turn off your heating system and seek professional advice immediately.
Conclusion
Prompt central heating leak detection is essential for maintaining your system’s efficiency, preventing property damage, and avoiding costly repairs. By understanding the signs of a leak and knowing when to call in professionals, you can address issues before they escalate into emergencies.
Regular maintenance remains the best prevention strategy, alongside periodic checks of your system’s pressure and components. If you do experience a leak, modern detection techniques can locate the source with minimal disruption to your home.
Remember that attempting to repair certain components, particularly those involving gas or high-pressure systems, should only be undertaken by qualified professionals. Prioritizing safety and proper diagnosis will save you time, money, and stress in the long run.
Need professional help? Contact our certified leak detection engineers today for a thorough inspection of your central heating system.
