Connecting Solar Panels to House Wiring in the UK: Complete Guide

Connecting Solar Panels to House Wiring in the UK: Complete Guide

Connecting solar panels to your home’s electrical system in the UK requires careful planning, understanding of regulations, and ideally, professional assistance. This guide walks you through the entire process of safely and legally connecting solar photovoltaic (PV) systems to your house wiring, covering everything from basic concepts to detailed installation steps.

With energy prices continuing to rise and environmental concerns growing, installing solar panels has become increasingly popular among UK homeowners. Beyond the environmental benefits, properly connected solar systems and Solar Worth can significantly reduce your electricity bills and even generate income through the Smart Export Guarantee (SEG) scheme.

Understanding the UK Solar Panel Connection Requirements

Connecting Solar Panels to House Wiring in the UK

Before connecting solar panels to your house wiring in the UK, you must be aware of several important regulations:

  • MCS Certification: For systems to qualify for the Smart Export Guarantee scheme, installation must be completed by an MCS (Microgeneration Certification Scheme) certified installer.
  • Building Regulations: Solar panel installations must comply with UK building regulations, including structural considerations and electrical safety standards.
  • DNO Notification: You must inform your Distribution Network Operator (DNO) about your installation if your system capacity exceeds 3.68kW (16A per phase).
  • Electrical Regulations: All work must comply with BS 7671 (IET Wiring Regulations) and Part P of the Building Regulations.

Required Qualifications

In the UK, connecting solar panels to house wiring is not typically a DIY project. The person connecting the system must:

  • Be a qualified electrician with specific solar PV installation training
  • Hold qualifications such as:
    • City & Guilds 2391-52 Inspection & Testing
    • City & Guilds 2392-10 Fundamentals of Solar PV Installation
    • Level 3 Award in Installing Solar PV Systems

Useful: Electrical Wiring Diagrams for Houses: Layouts, Components, and Safety Tips

Components Needed for Solar Panel Connection

Essential Equipment

To connect solar panels to your house wiring, you’ll need:

  1. Solar PV Panels: Monocrystalline, polycrystalline, or thin-film panels
  2. Inverter: String inverter, microinverter, or power optimizer system
  3. Generation Meter: Measures the total electricity your system produces
  4. AC Isolator Switch: Allows you to disconnect the AC side of the system
  5. DC Isolator Switch: Allows you to disconnect the solar panels from the inverter
  6. Solar PV Distribution Board: Houses the necessary circuit breakers
  7. AC Cables: Connects the inverter to your consumer unit
  8. DC Cables: Connects the solar panels to the inverter (must be solar-specific)
  9. Mounting System: Rails and clamps to secure panels to your roof

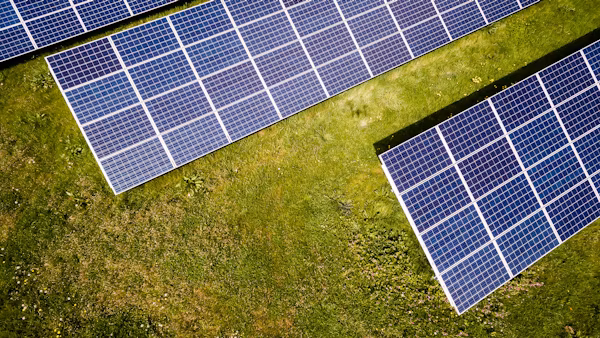

Components Needed for Solar Panel Connection

Optional Components

Depending on your specific requirements, you might also need:

  • Battery Storage System: For storing excess energy
  • Export Limitation Device: If your DNO limits your export capacity
  • Smart Monitor: To track your energy production and consumption
  • Surge Protection Devices (SPDs): To protect your equipment from lightning and power surges

Types of Solar PV Systems in the UK

Grid-Tied Systems

The most common type in the UK, grid-tied systems connect to the National Grid, allowing you to:

  • Use solar power when it’s available
  • Draw electricity from the grid when needed
  • Export excess electricity back to the grid (earning money through the SEG scheme)

These systems do not provide power during grid outages for safety reasons.

Hybrid Systems

These systems include battery storage and:

  • Store excess energy for later use
  • Provide limited backup power during outages
  • Maximize self-consumption of solar energy
  • Often include intelligent energy management systems

Off-Grid Systems

Rare in mainland UK but sometimes used in remote locations:

  • Completely independent from the National Grid
  • Require substantial battery storage
  • Need backup generators for periods of low solar production
  • Require more careful load management

Step-by-Step Connection Process

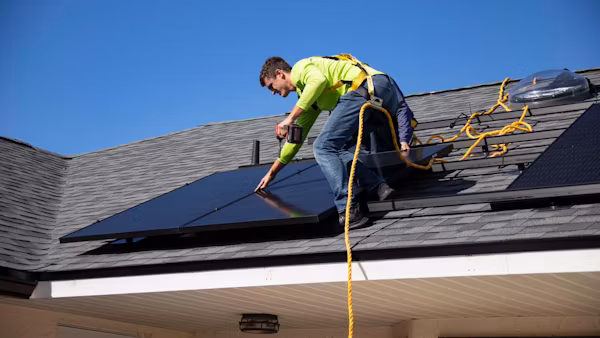

Step-by-Step Connection Process

Step 1: Site Assessment and System Design

Before any installation begins:

  1. Evaluate your roof’s orientation, angle, and shading
  2. Calculate your household energy consumption
  3. Determine the appropriate system size
  4. Design the system layout considering structural and electrical limitations
  5. Select appropriate components that meet UK standards

Step 2: Obtaining Necessary Permissions

Before proceeding with installation:

  1. Check if planning permission is required (usually not needed for domestic installations unless in conservation areas)
  2. Notify your building insurance provider
  3. For systems larger than 3.68kW, submit an application to your DNO
  4. Ensure your MCS-certified installer has appropriate warranties and insurance

Step 3: Installation of Solar Panels and Mounting

The physical installation typically involves:

  1. Erecting scaffolding for safe roof access
  2. Installing mounting rails according to manufacturer specifications
  3. Securing the solar panels to the mounting system
  4. Connecting panels in strings according to the system design
  5. Proper weather sealing of roof penetrations

Step 4: DC Wiring and Isolator Installation

For the DC side of the system:

  1. Run specialized DC solar cable from the panels to the inverter location
  2. Install a DC isolator switch as close to the panels as practical
  3. Ensure proper cable sizing based on current, voltage drop, and distance
  4. Use specialized MC4 connectors and ensure weatherproof connections
  5. Label all components and cables clearly

Step 5: Inverter Installation and AC Connection

For the AC side and inverter:

  1. Mount the inverter in a suitable location (typically cool, dry, and accessible)
  2. Connect the DC cables from the solar panels to the inverter
  3. Install an AC isolator near the inverter
  4. Run appropriately sized AC cable from the inverter to your consumer unit
  5. Install a dedicated circuit breaker in your consumer unit

Step 6: Connection to Consumer Unit

The critical connection to your house wiring:

  1. Switch off main power at the consumer unit
  2. Install a dedicated MCB (Miniature Circuit Breaker) for the solar system
  3. Connect the solar feed cable to this dedicated MCB
  4. Install an RCD (Residual Current Device) if required
  5. Label the new circuit clearly

It’s essential this work is performed by a qualified electrician who understands both solar PV systems and UK wiring regulations.

Step 7: Metering and Monitoring Setup

To track your system’s performance:

  1. Install a generation meter to record total system production
  2. Connect any energy monitoring systems
  3. Set up export metering if participating in the SEG scheme
  4. Configure any associated apps or monitoring software

Step 8: Testing and Commissioning

Before the system goes live:

  1. Perform visual inspection of all connections
  2. Test all isolators and emergency shutdown procedures
  3. Conduct earth continuity and insulation resistance tests
  4. Verify polarity of all connections
  5. Complete performance testing under various conditions

Step 9: Documentation and Handover

Final steps include:

  1. Receiving MCS certificate from your installer
  2. Getting electrical installation certificates
  3. Updating your home energy performance certificate (EPC)
  4. Learning system operation and maintenance procedures
  5. Registering for the Smart Export Guarantee with an energy supplier

Related: Rewiring a Plug: Complete Step-by-Step UK Guide

Grid Connection Options in the UK

Standard Connection (G98)

For smaller domestic systems (up to 3.68kW single-phase or 11.04kW three-phase):

  • Simplified notification process
  • No prior approval needed, just inform DNO within 28 days of commissioning
  • Standard inverter protection settings

Larger System Connection (G99)

For systems exceeding the G98 limits:

  • Requires pre-approval from your DNO
  • May require grid impact assessment
  • Potentially higher connection costs
  • Possibly stricter export limitations

Export Limitation

If your DNO limits the amount of electricity you can export:

  • Export limitation devices can be installed
  • These monitor house consumption and limit inverter output accordingly
  • Ensures compliance with DNO requirements
  • May be required in areas with grid capacity issues

Smart Export Guarantee and Metering

Understanding the SEG Scheme

The Smart Export Guarantee replaced the Feed-in Tariff (FiT) scheme:

  • Energy suppliers with over 150,000 customers must offer an export tariff
  • Rates vary between suppliers, so shopping around is advisable
  • Payment is based on measured export rather than estimated figures

Metering Requirements

To participate in the SEG:

  • You need a smart meter or export meter
  • The system must be installed by an MCS-certified installer
  • Your property needs an EPC rating of D or above
  • You must register with an SEG supplier

Maximizing SEG Benefits

To get the most from the SEG scheme:

  • Compare tariffs between different energy suppliers
  • Consider time-of-use export tariffs if your usage patterns allow
  • Match your export with peak demand times if possible
  • Consider battery storage to control when you export

Safety Considerations

Electrical Safety

Connecting solar panels safely requires:

  • Proper isolation procedures during installation
  • Correct sizing of cables and circuit protection devices
  • Regular testing of RCDs and circuit breakers
  • Clear labeling of all solar-related components
  • Emergency shutdown instructions posted near the inverter

Fire Safety

To minimize fire risks:

  • Install DC isolators to disconnect panels
  • Use proper cable management to prevent damage
  • Ensure adequate ventilation around the inverter
  • Keep combustible materials away from electrical components
  • Consider installing arc fault detection devices

Maintenance Access Safety

For safe maintenance:

  • Provide safe access routes to equipment
  • Install panels with adequate spacing for maintenance
  • Consider solar panel cleaning systems to reduce roof access needs
  • Document safe isolation procedures for maintenance

Common Installation Mistakes to Avoid

Technical Errors

Common mistakes when connecting solar panels include:

  1. Incorrect cable sizing: Undersized cables can overheat and create fire hazards
  2. Poor weatherproofing: Improper sealing leads to water ingress and system failures
  3. Inadequate roof assessment: Not verifying structural capacity before installation
  4. Incorrect inverter sizing: Mismatch between panel capacity and inverter rating
  5. Insufficient circuit protection: Missing or inadequate surge protection devices

Regulatory Mistakes

Avoid these common regulatory pitfalls:

  1. Not informing your DNO: Required for systems over 3.68kW
  2. Missing MCS certification: Required for SEG eligibility
  3. Failing to notify building insurance: May invalidate your policy
  4. Not updating your EPC: Required for SEG participation
  5. DIY connection to consumer unit: Potentially illegal under Part P regulations

Maintenance of Connected Solar Systems

Regular Checks

To keep your solar connection in good condition:

  1. Visual inspections: Check for damage to panels, cables, and mounting systems
  2. Performance monitoring: Track output to spot potential issues
  3. Isolation testing: Verify isolator switches function correctly
  4. Connection tightness: Check for loose connections that could cause arcing
  5. Cleaning panels: Remove debris that may reduce efficiency

When to Call a Professional

Seek professional help if you notice:

  • Significant unexplained drop in energy production
  • Error messages on your inverter
  • Circuit breakers tripping regularly
  • Visible damage to any components
  • Warning lights on monitoring equipment

Battery Storage Integration

Connecting Batteries to Existing Solar Systems

Adding batteries to your solar setup:

  • Requires an additional battery inverter or hybrid inverter replacement
  • Needs appropriate control systems for charging/discharging
  • May require consumer unit modifications
  • Should include additional isolation and protection devices
  • Often benefits from energy management systems

AC vs DC Coupled Systems

The two main approaches to battery integration:

  • DC Coupling: Batteries connect to solar panels before the inverter, offering higher efficiency but less flexibility
  • AC Coupling: Batteries have their own inverter, providing more flexibility and easier retrofitting to existing systems

Battery System Sizing

Proper sizing depends on:

  • Your typical daily consumption pattern
  • How much energy you want to store
  • Available space for battery installation
  • Budget constraints
  • Whether you need backup power capability

Cost Considerations

Initial Installation Costs

For a typical UK home, connecting solar panels includes:

  • System components: £5,000-£8,000 for a 4kW system
  • Installation labor: £1,000-£2,000
  • Additional consumer unit work: £200-£500
  • Smart metering equipment: £100-£300
  • Required certificates and permissions: £100-£200

Return on Investment Calculations

To calculate your ROI:

  • Estimate annual energy production (typically 850-950kWh per kW installed in the UK)
  • Calculate energy bill savings based on your tariff
  • Add projected SEG income
  • Subtract maintenance costs
  • Consider system degradation (typically 0.5-0.8% per year)

Most UK systems achieve payback in 7-15 years depending on size, location, and energy usage patterns.

Troubleshooting Common Connection Issues

Inverter Problems

If your inverter shows errors or doesn’t function:

  1. Check all isolator switches are in the correct position
  2. Verify grid voltage is within acceptable range
  3. Check for error codes and consult the manual
  4. Ensure proper ventilation around the inverter
  5. Look for tripped circuit breakers

Production Below Expectations

If your system produces less energy than expected:

  1. Check for panel shading or soiling
  2. Verify string connections are intact
  3. Look for signs of panel degradation
  4. Compare actual weather conditions to projections
  5. Check for inverter clipping (output limitation)

Connection Trips and Faults

If your system trips circuit breakers:

  1. Look for signs of water ingress
  2. Check for damage to insulation
  3. Test for ground faults
  4. Verify correct circuit breaker sizing
  5. Look for signs of overheating connections

Frequently Asked Questions

Can I connect solar panels myself in the UK?

While you can install the physical panels yourself, connecting them to your house wiring must be done by a qualified electrician. For SEG eligibility, the entire installation must be performed by an MCS-certified installer.

Do I need permission from my electricity supplier?

You don’t need permission from your supplier, but you do need to notify your Distribution Network Operator (DNO) for systems larger than 3.68kW.

What happens to solar power when my batteries are full?

With grid-connected systems, excess power is exported to the grid once batteries are full. With export limitation devices, the system can reduce production to prevent export if required.

Can I go completely off-grid in the UK?

While technically possible, it’s rarely practical or cost-effective in mainland UK due to our variable climate and the extensive battery storage required for winter months.

Will solar panels power my home during a power cut?

Standard grid-tied systems shut down during power cuts for safety reasons. Special hybrid systems with backup functionality can provide limited power during outages.

How many solar panels do I need to power my house?

An average UK home uses about 3,700 kWh of electricity annually. Depending on your location, you might need 10-14 panels (approximately 3.5-4.5kW) to generate this amount.

Conclusion

Connecting solar panels to your house wiring in the UK involves careful planning, knowledge of regulations, and professional expertise. When done correctly, it provides a safe, efficient renewable energy system that can significantly reduce your carbon footprint and energy bills.

The process requires attention to both technical and regulatory details, but the long-term benefits of properly installed solar PV systems make it worthwhile for many UK homeowners. By following the guidelines in this comprehensive guide, you’ll be well-prepared to embark on your solar journey or have informed conversations with professional installers.

Remember that regulations and incentives change periodically, so always verify the latest requirements before proceeding with your installation.
